Removable Valve Insulation Jackets: The Hidden Energy Saver

Walk into almost any mechanical plant room in Ireland — whether it serves a hospital, a data centre, a pharmaceutical facility, or a commercial office block — and you will likely see a familiar sight: long runs of neatly insulated pipework, cladded in aluminium, running in every direction. And then, at every valve, flange, and fitting, the insulation stops. Bare metal, radiating heat into the room, wasting energy around the clock. Removable valve insulation jackets solve this problem simply and effectively, yet they remain one of the most underused energy-saving measures available to building and facility managers in Ireland today.

What Are Valve Insulation Jackets?

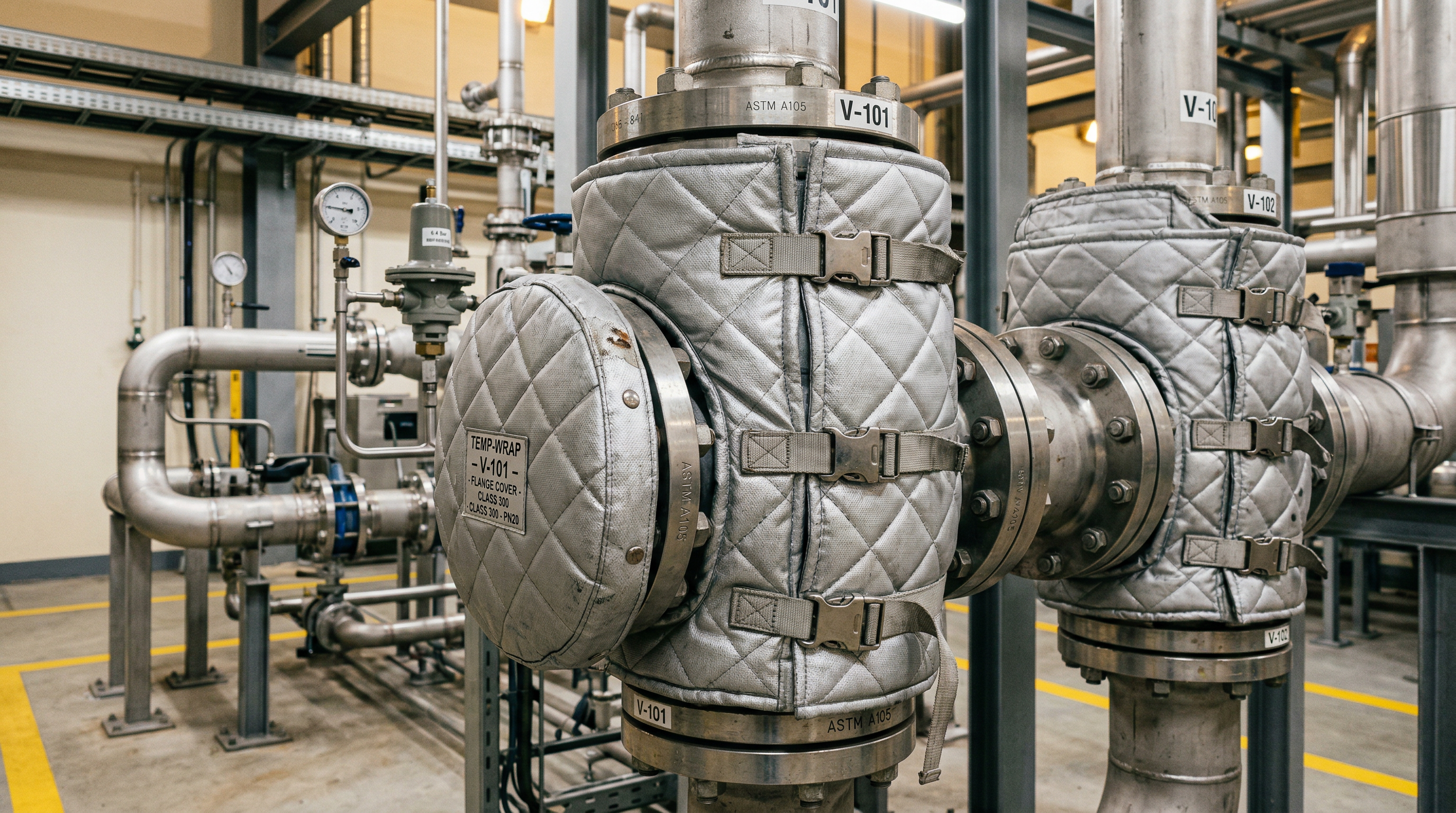

Removable valve insulation jackets — sometimes called reusable insulation covers, valve blankets, or thermal wraps — are custom-fabricated insulation enclosures designed to fit precisely around valves, flanges, strainers, steam traps, and other irregular fittings that cannot be insulated with standard pipe sections or slabs. Unlike fixed insulation, they are specifically engineered to be removed and refitted quickly, allowing full maintenance access to the component without any damage to the insulation itself.

Each jacket is individually measured and fabricated to match the exact dimensions and geometry of the valve or fitting it will cover. No two valve installations are identical, and a poorly fitting jacket will leave gaps that dramatically reduce its effectiveness.

Why Are So Many Valves Left Uninsulated?

The reason valves and fittings are so frequently left bare is straightforward: traditional fixed insulation must be destroyed and replaced every time the valve needs maintenance, inspection, or replacement. Facility managers and maintenance teams, knowing that valves require periodic attention — repacking, adjustment, replacement — often make the pragmatic decision to leave them uninsulated rather than repeatedly pay for insulation that will be torn off and discarded at the next service interval.

The result is that in many plant rooms, every valve, flange, strainer, and control valve sits bare — radiating heat directly into the surrounding space. It is not unusual for us to walk into a plant room where the ambient temperature exceeds 40°C purely because of radiant heat from uninsulated fittings.

The Energy Cost of Uninsulated Valves

The energy loss from uninsulated valves is far greater than most facility managers realise. Because valves have a much larger surface area relative to their pipe connection size — owing to their body, bonnet, handwheel, and flange connections — they radiate heat at a rate disproportionate to their physical size in the system.

To put this in practical terms: a single uninsulated 150mm (6-inch) gate valve can lose as much heat as 3 to 4 metres of uninsulated pipe of the same diameter. When you consider that a typical mechanical plant room might contain 50, 100, or even 200 valves of various sizes, the aggregate energy loss becomes enormous. Industry research consistently shows that up to 10–15% of a system's total heat loss can come from uninsulated valves, flanges, and fittings alone.

For a facility spending €100,000 or more per year on heating energy, that represents €10,000–€15,000 in annual waste — heat that is generated, paid for, and simply radiated into plant rooms where it serves no purpose. In many cases, the excess heat then needs to be removed by ventilation or cooling systems, compounding the waste.

Safety Benefits: More Than Just Energy

Energy savings are the primary driver for valve insulation jackets, but the safety benefits are equally important — and in some cases, they alone justify the investment. Exposed valves on hot water, LTHW (low-temperature hot water), MTHW (medium-temperature hot water), and steam systems can reach surface temperatures well in excess of 150°C. Contact with these surfaces, even briefly, causes severe burns.

Under Irish workplace safety legislation and the Safety, Health and Welfare at Work Act 2005, employers have a duty to protect employees from foreseeable hazards — and exposed hot surfaces in accessible areas are precisely the kind of hazard that regulators expect to see controlled. Any surface above 60°C that could be accidentally touched should be insulated or guarded. Removable insulation jackets reduce surface temperatures to safe levels while still allowing maintenance access when needed.

In healthcare settings such as hospitals and nursing homes, the requirement for surface temperature control is even more critical. Similarly, in pharmaceutical and data centre environments, personnel safety and controlled conditions are non-negotiable.

How Removable Jackets Are Constructed

A quality removable valve insulation jacket is a precision-engineered product, not a simple blanket thrown over a valve. Understanding the construction helps explain why they perform so well — and why poorly made alternatives fail.

Inner Insulation Layer

The core insulating material is typically high-density mineral wool, silicone-coated fibreglass, or aerogel blanket, selected based on the operating temperature of the system. For standard LTHW applications (up to around 110°C), mineral wool is the most common and cost-effective choice. For higher-temperature steam systems or applications where moisture resistance is important, silicone-coated fibreglass or aerogel provide superior performance. The insulation thickness is specified to achieve the required thermal performance — typically 25mm to 50mm depending on the application.

Outer Protective Layer

The outer layer serves as both a weather barrier and a durable protective skin. Common outer materials include silicone-impregnated fibreglass cloth (for high-temperature applications), PVC-coated nylon (for indoor applications at moderate temperatures), and aluminium foil-faced fabric (providing both heat reflectivity and moisture resistance). In our experience, the aluminium foil-faced outer layer is the preferred option for most Irish applications — it provides excellent durability, a clean professional appearance, and the reflective surface adds to the thermal performance.

Quilted Construction and Fasteners

The insulation and outer layer are stitched together in a quilted pattern, preventing the insulation from shifting or compressing over time. This construction allows the jacket to conform to the irregular shape of the valve body while maintaining consistent insulation thickness. Each jacket is fitted with a fastener system — typically stainless steel lacing hooks, Velcro straps, or toggle-and-wire closures — that allows removal and refitting in seconds without tools. A maintenance technician can remove the jacket, carry out the required work, and refit it immediately afterwards. No material is wasted, and the valve is protected again within minutes.

Applications Across Irish Industry

Removable valve insulation jackets are relevant across virtually every sector that uses heated or cooled piped services. In Ireland, we see particularly strong demand in the following areas:

Data Centres

Ireland's data centre sector contains extensive chilled water and condenser water systems with large numbers of butterfly and balancing valves. Insulating chilled water valves prevents condensation, reduces energy loss, and helps maintain precise temperature control — critical in environments where even small inefficiencies are multiplied across very large cooling loads.

Pharmaceutical and Biopharma

Ireland's pharmaceutical sector relies on precise temperature control across steam, hot water, glycol, and clean utility systems. Removable jackets are particularly valued in these environments because they can be removed quickly for validation, cleaning, and maintenance without generating debris or fibres.

Hospitals and Healthcare

Irish hospitals typically operate LTHW heating and steam systems, with plant rooms containing hundreds of valves. Removable jackets improve energy efficiency in buildings that operate around the clock and address burn-risk concerns in areas where non-technical staff may access plant rooms or service risers.

Commercial and Public Buildings

Office buildings, universities, schools, and public buildings across Dublin and the greater Leinster area all have plant rooms with uninsulated valves. With increasing pressure from BER ratings, the EU Energy Efficiency Directive, and rising energy costs, removable valve jackets offer one of the simplest and most cost-effective upgrades available — requiring no system shutdown, no design changes, and no disruption to occupants.

Cost and Payback

One of the most compelling aspects of removable valve insulation jackets is their financial payback. Unlike many energy-saving measures that require significant capital expenditure and long payback periods, valve jackets typically pay for themselves within 6 to 12 months through reduced energy consumption alone.

The cost varies depending on valve size, type, and insulation specification, but as a general guide, a jacket for a 100mm gate valve might cost €80–€150 to fabricate and install. The annual energy saving from insulating that same valve — assuming a hot water system at 80°C in a 20°C plant room — can be €100–€200. The jacket pays for itself within the first heating season, and every year thereafter represents a net saving.

For a plant room with 50 valves, the total investment might be €5,000–€10,000, with annual energy savings of €7,000–€15,000. Over the typical 10–15 year lifespan of a well-made jacket, the cumulative savings are substantial. Steam systems see even faster payback — as short as 3–4 months — due to the significantly greater heat loss from higher-temperature surfaces.

Why Experienced Fitting Matters

Removable valve insulation jackets are only as effective as their fit. A jacket that is too loose leaves air gaps where heat escapes. A jacket that is too tight compresses the insulation and reduces its thermal performance. A jacket that does not fully enclose the valve body, bonnet, and flange connections leaves exposed metal that continues to radiate heat. Getting it right requires experience — experience in measuring, in understanding valve geometry, in selecting the right materials, and in fabricating jackets that fit precisely.

Proper Measurement and Custom Fabrication

Every valve installation is different. The valve may be a gate, globe, butterfly, ball, check, or control valve — each with a distinct body shape. Surrounding pipework, adjacent valves, pipe supports, actuators, and access constraints all affect the jacket design. We measure every valve individually, recording type, size, orientation, clearances, and obstructions. Based on these measurements, each jacket is fabricated to order with patterns developed for the specific installation conditions.

Ensuring No Gaps

The most critical aspect of fitting is ensuring complete coverage. Thermal imaging studies have shown that even a small gap — as little as 5% of the total surface area left exposed — can reduce overall insulation effectiveness by 20% or more. Our engineers check every jacket on installation, ensuring all surfaces are covered, all fasteners are secure, and the jacket sits snugly without compression or gaps.

Making the Case for Your Facility

If you manage or maintain a building with a mechanical plant room — and most commercial and industrial buildings in Ireland have one — there is a very strong likelihood that you have uninsulated valves losing energy and money right now. The case for removable valve insulation jackets is simple:

• Energy savings — reduce heat loss from valves and flanges by up to 90%, cutting overall system energy waste by 10–15%
• Rapid payback — typical return on investment within 6–12 months, with ongoing savings for 10–15 years
• Improved safety — reduce surface temperatures from 150°C+ to safe-to-touch levels, meeting workplace safety obligations
• No disruption — jackets are fitted around existing valves without any system shutdown or pipework modification
• Maintenance friendly — remove in seconds for valve access, refit immediately afterwards with no waste
• Environmental compliance — contributes to carbon reduction targets and improved building energy ratings

For facilities subject to energy audits, ISO 50001 energy management certification, or corporate sustainability reporting, valve insulation jackets represent one of the easiest and most demonstrable energy-saving measures available. They are visible, measurable, and deliver real results from day one.

The question is not whether you can afford to insulate your valves — it is whether you can afford not to.
